      A user flow is a visual representation of the steps that a user takes to complete a specific task or achieve a specific goal on a website, app, or other digital product. It maps out the user’s journey from start to finish and helps designers and developers understand how to optimize the user experience.

      User flows typically start with a clear definition of the user’s goals, and then outline each step the user needs to take to accomplish those goals. This might include filling out a form, making a selection, or navigating to another page. At certain points in the flow, the user may need to make a decision or receive feedback and validation on their progress. Finally, the flow should include clear end points, indicating when the user has successfully completed the task or achieved the goal.

      User flows are important because they help designers and developers understand how users interact with a product, and where they might encounter difficulties or confusion. By carefully mapping out user flows, designers can identify and address potential pain points, streamline the user experience, and create products that are intuitive, easy to use, and effective at meeting users’ needs.



      Elements of User Flow

      • User goals: Should start with a clear definition of the user’s goals. What is the user trying to accomplish, and what are the key steps involved in achieving that goal?
      • Entry points: Where does the user enter the flow? This could be a landing page, a menu item, or a link from another page.
      • Steps: Outline each step the user needs to take to complete the task or achieve the goal. This might include filling out a form, making a selection, or navigating to another page.
      • Decision points: At certain points in the flow, the user may need to make a decision. For example, they might need to choose between two options or decide whether to proceed with a purchase.
      • Feedback and validation: Include feedback and validation at each step. This could be as simple as a message indicating that the user has successfully completed a step, or it could be more complex, such as an error message if the user inputs incorrect information.
      • End points: Include clear end points, indicating when the user has successfully completed the task or achieved the goal.

      User flows can be represented in a variety of ways, including flowcharts, diagrams, and wireframes. The key is to make sure that the flow is easy to understand and follow, and that it provides a clear roadmap for users to achieve their goals.



      Steps (The specific steps will depend on the product and the task or goal the user is trying to accomplish):

      1. Entry point: This is where the user first encounters the product, whether it’s a landing page, a login screen, or a home screen.
      2. Onboarding: If new to the product, there may be an onboarding process that introduces them to the features and functionality of the product.
      3. Navigation: Needs to be able to find their way around the product, whether it’s through menus, links, or other navigation elements.
      4. Actions: Needs to take specific actions to achieve their goals, such as filling out a form, making a selection, or entering information.
      5. Decision points: At certain points in the flow, they may need to make a decision, such as choosing between two options or deciding whether to proceed with a purchase.
      6. Feedback and validation: The product should provide feedback and validation to the user at each step, such as indicating that they have successfully completed a step or providing an error message if they input incorrect information.
      7. End points: Finally, the flow should include clear end points, indicating when the user has successfully completed the task or achieved the goal.

      By mapping out these steps in a user flow, designers and developers can identify potential pain points and areas where users might get stuck or confused. They can then optimize the product to make it easier and more intuitive to use, improving the overall user experience.



      Advantages

      • Improved user experience: By carefully mapping out the user’s journey, designers and developers can identify potential pain points and optimize the user experience to make it more intuitive and efficient.
      • Clarity and organization: Provide a clear and organized structure for the design and development process, making it easier to identify the key steps and decisions involved in completing a task or achieving a goal.
      • Collaboration and communication: Help designers and developers communicate and collaborate more effectively by providing a common language and framework for discussing the user experience.
      • User testing and validation: Used as a basis for user testing and validation, helping to ensure that the product meets the needs and expectations of its target audience.
      • Iteration and improvement: Flexible tool that can be iterated and refined over time as designers and developers gain more insight into the user’s experience and feedback from user testing.



      Disadvantages

      • Limited scope: Typically focused on a specific task or goal, and may not provide a complete picture of the user experience. Other aspects of the product, such as navigation, visual design, and copywriting, may also impact the user experience but may not be captured in a user flow.
      • Simplified view: Simplified view of a user’s experience, and may not accurately reflect the complexities and nuances of real-world user behavior. Users may not always follow the intended path, and may encounter unexpected obstacles or opportunities that are not reflected in the flow.
      • Lack of context: May not capture the broader context in which users are interacting with the product. Factors such as the user’s prior experience, their motivation, and their environment may all impact their behavior but may not be explicitly accounted for in the flow.
      • Lack of user input: Typically created by designers and developers, rather than users themselves. While designers may have a deep understanding of user behavior and needs, there is always the risk that they may make incorrect assumptions or overlook important details that only users themselves can provide.

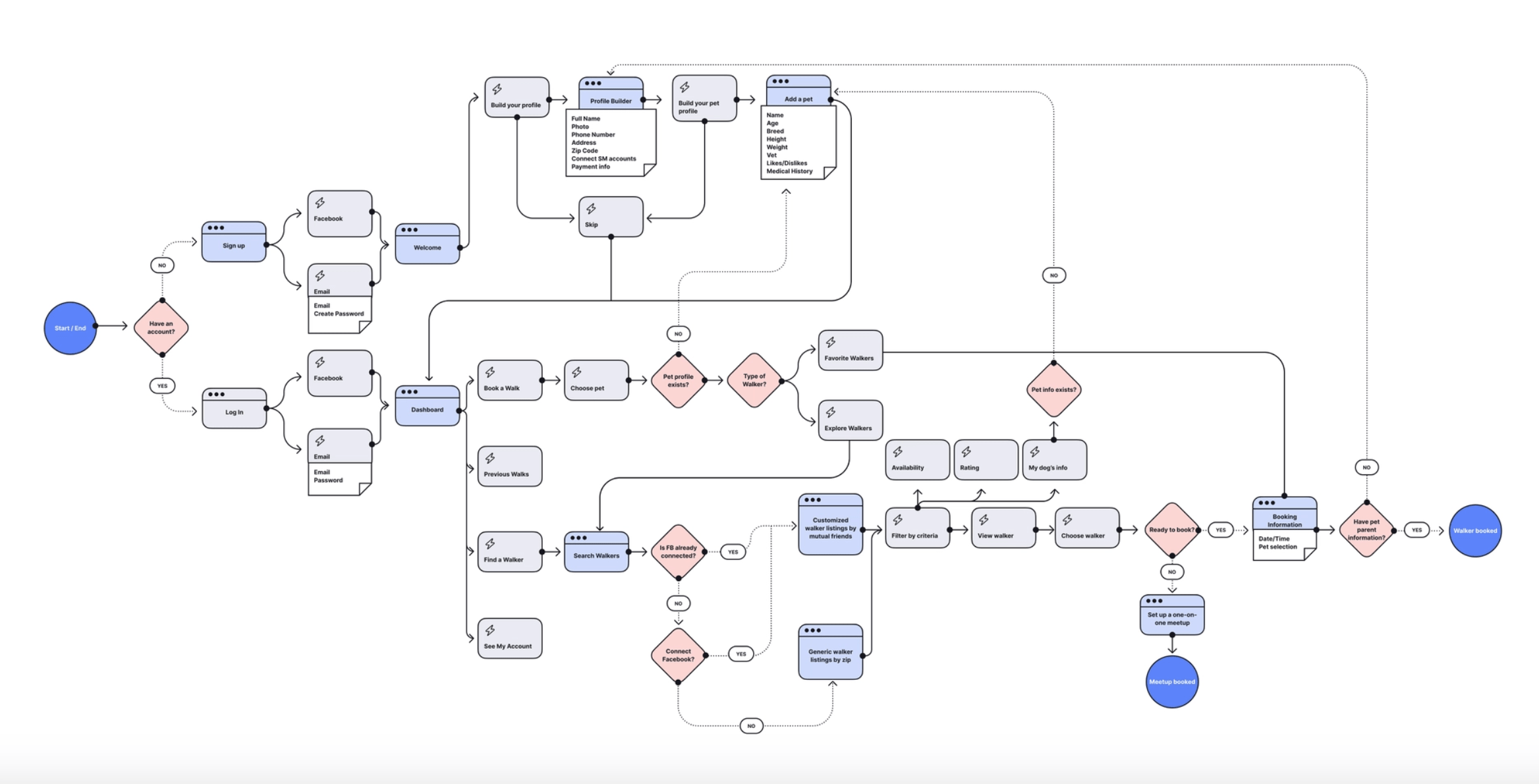

      user flow journey example UX



      Tools to create User Flows

      • Sketch: Popular design tool that allows you to create user flows, wireframes, and prototypes. It offers a wide range of design templates, symbols, and plugins, making it easy to create detailed and customized user flows.
      • Figma: Cloud-based design and collaboration tool that allows teams to work together on user flows, wireframes, and prototypes in real time. It includes a wide range of design features, such as vector editing, collaboration tools, and design systems.
      • Adobe XD: Design tool that allows you to create user flows, wireframes, and prototypes for web and mobile apps. It offers a range of design features, such as vector drawing tools, interactive prototypes, and collaboration tools.
      • Lucidchart: Web-based diagramming tool that offers a wide range of templates and shapes for creating user flows, wireframes, and other types of diagrams. It also allows for collaboration and commenting, making it a useful tool for teams.
      • Axure: Prototyping and wireframing tool that allows you to create user flows, wireframes, and interactive prototypes. It includes a wide range of design features, such as conditional logic, animations, and dynamic panels.



      What do the shapes and lines mean in user flow

      User flow diagrams typically use shapes and lines to represent different components of the flow, such as user actions, system responses, and connections between screens or pages.

      Here are some common shapes and lines used in user flow diagrams and their meanings:

      Shapes:

      • Circle or oval: represents the start or end point of the flow.
      • Rectangle: represents a step or action that the user takes in the flow.
      • Diamond: represents a decision point where the user must choose between different paths.
      • Cloud: represents an external system or service that the user interacts with.

      Lines:

      • Solid line: represents a direct connection between two shapes or steps in the flow.
      • Dashed line: represents an indirect or optional connection between shapes or steps.
      • Arrow: represents the direction of the flow, indicating the user’s progression through the steps.

      It’s important to note that there isn’t a universal standard for user flow diagrams, and different designers may use different shapes and lines to represent the same concepts. The key is to ensure that the diagram is clear and easy to understand for anyone who needs to use it.
